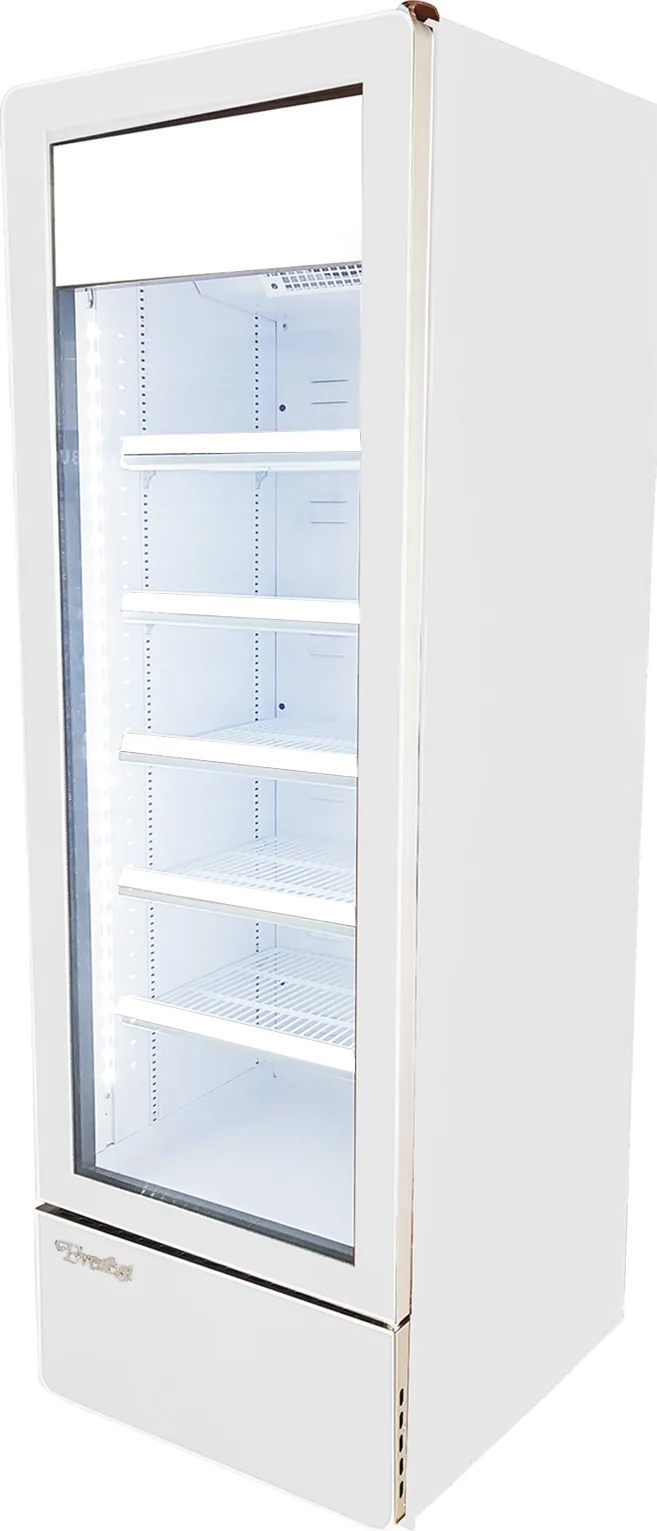

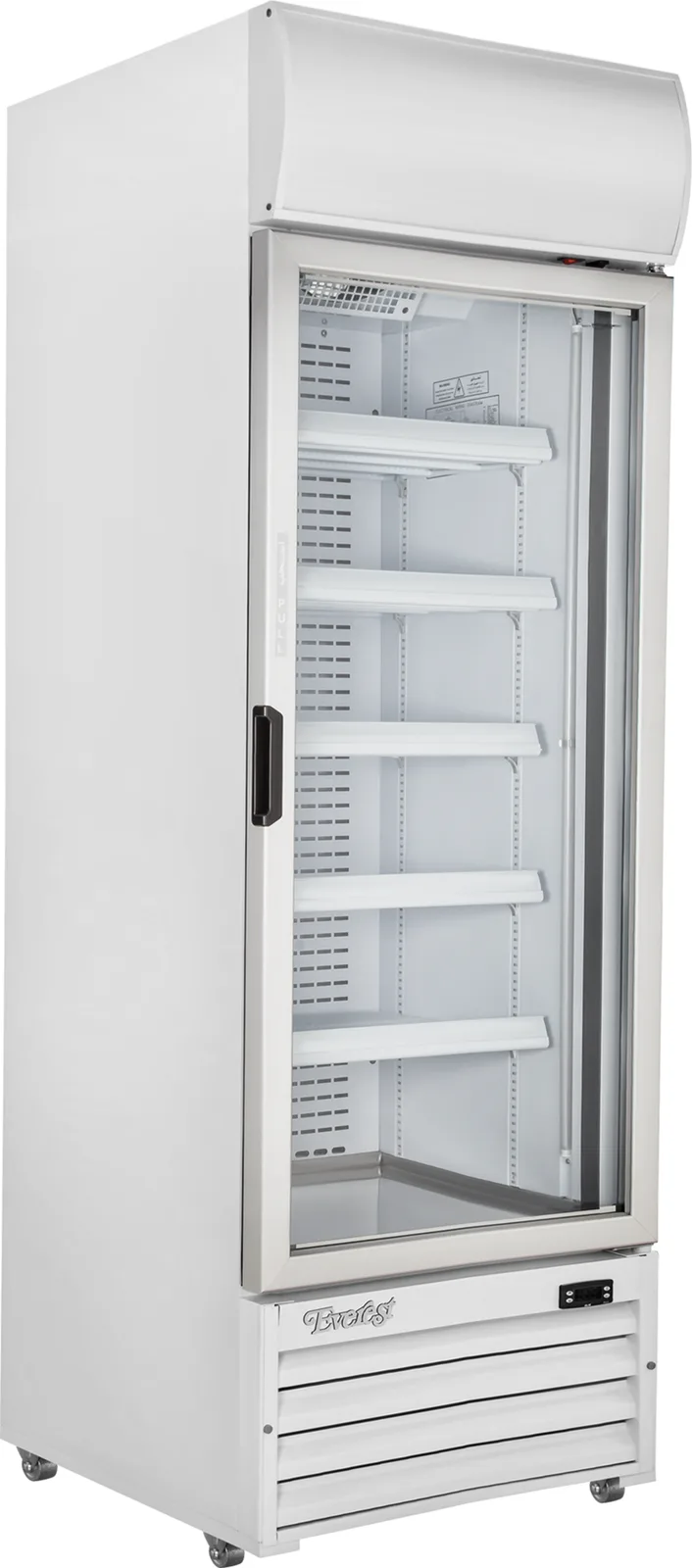

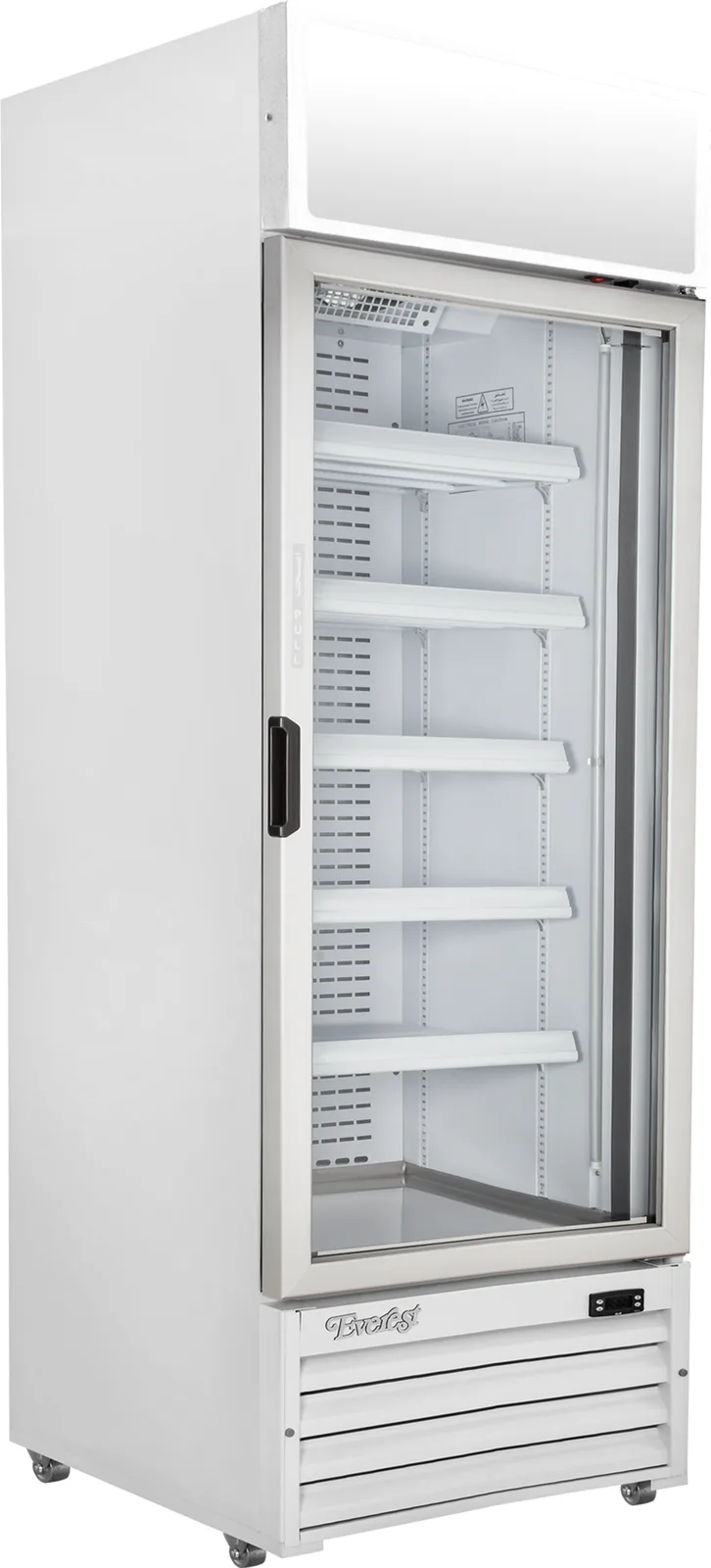

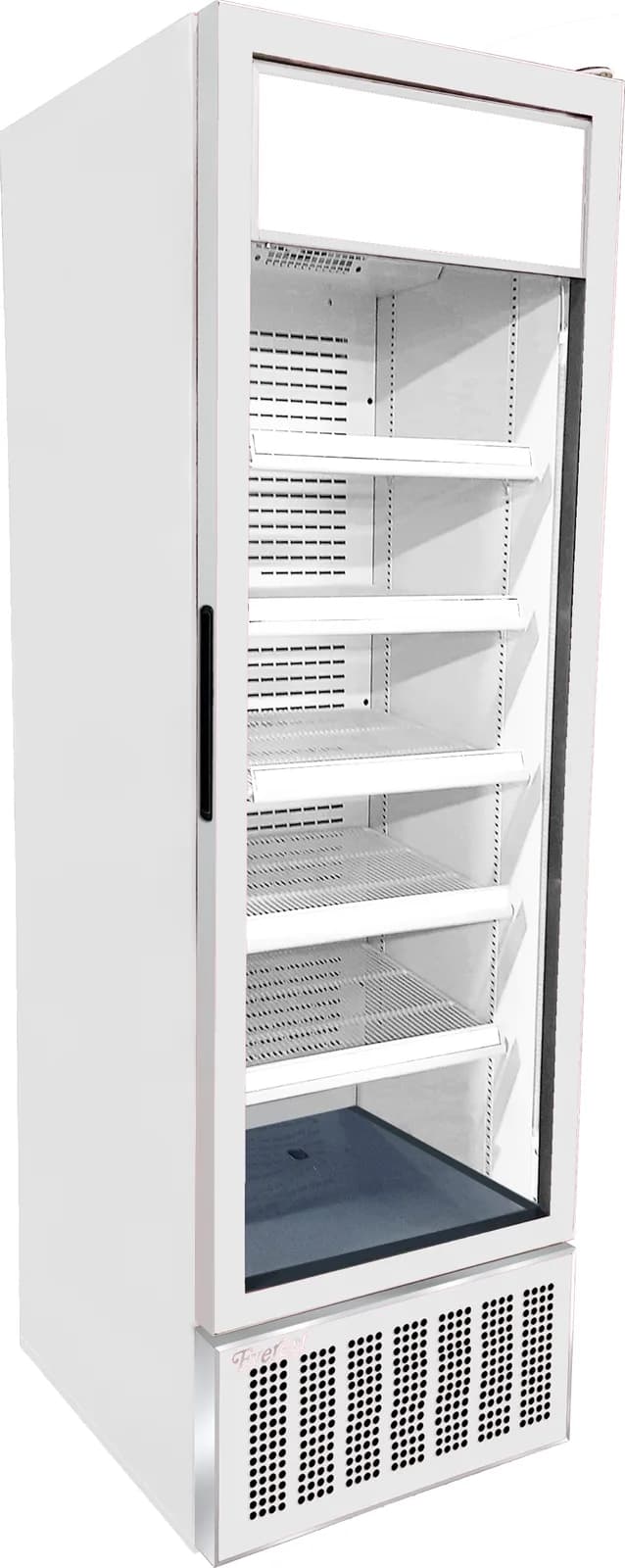

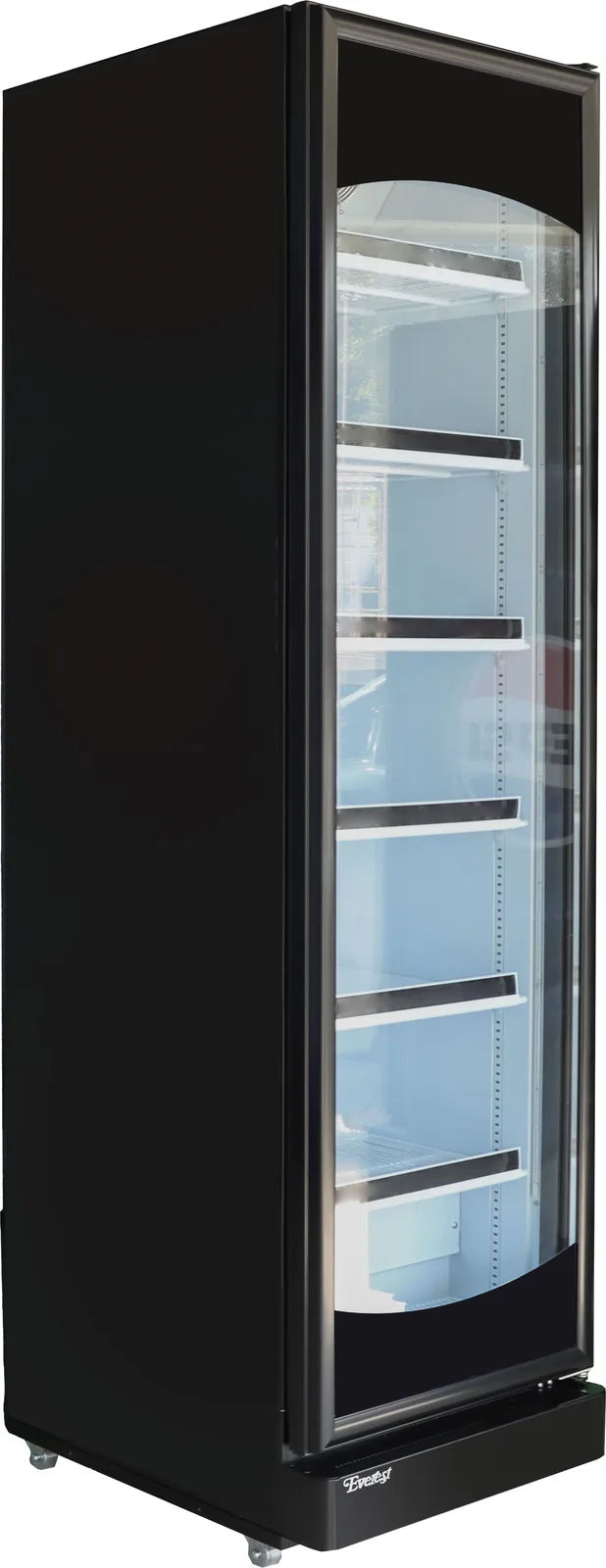

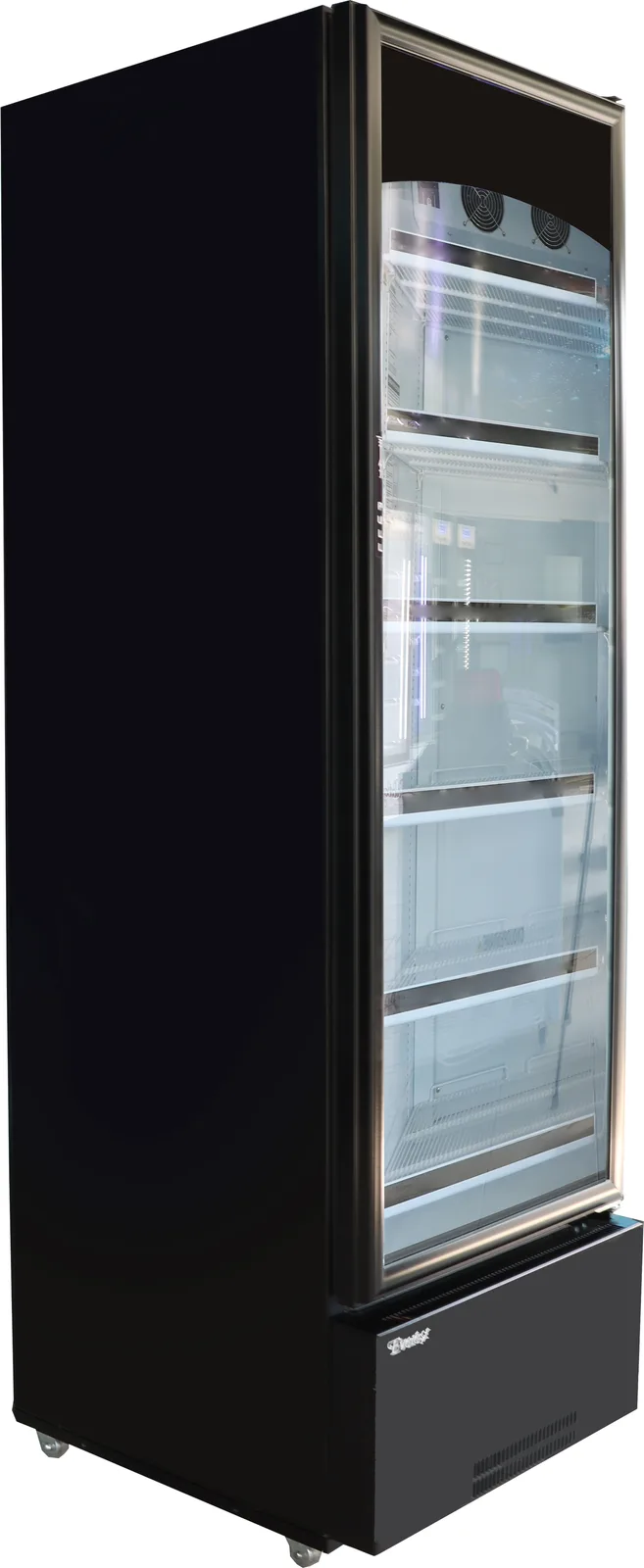

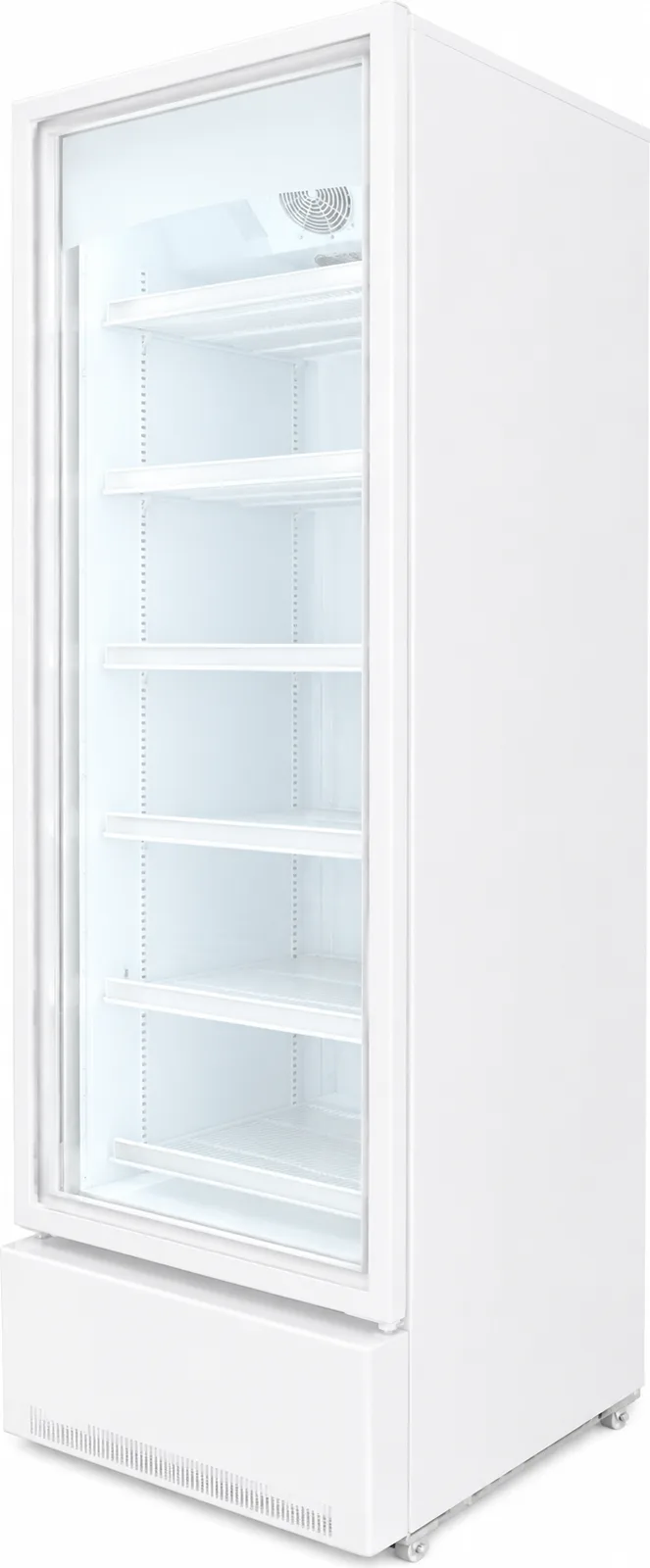

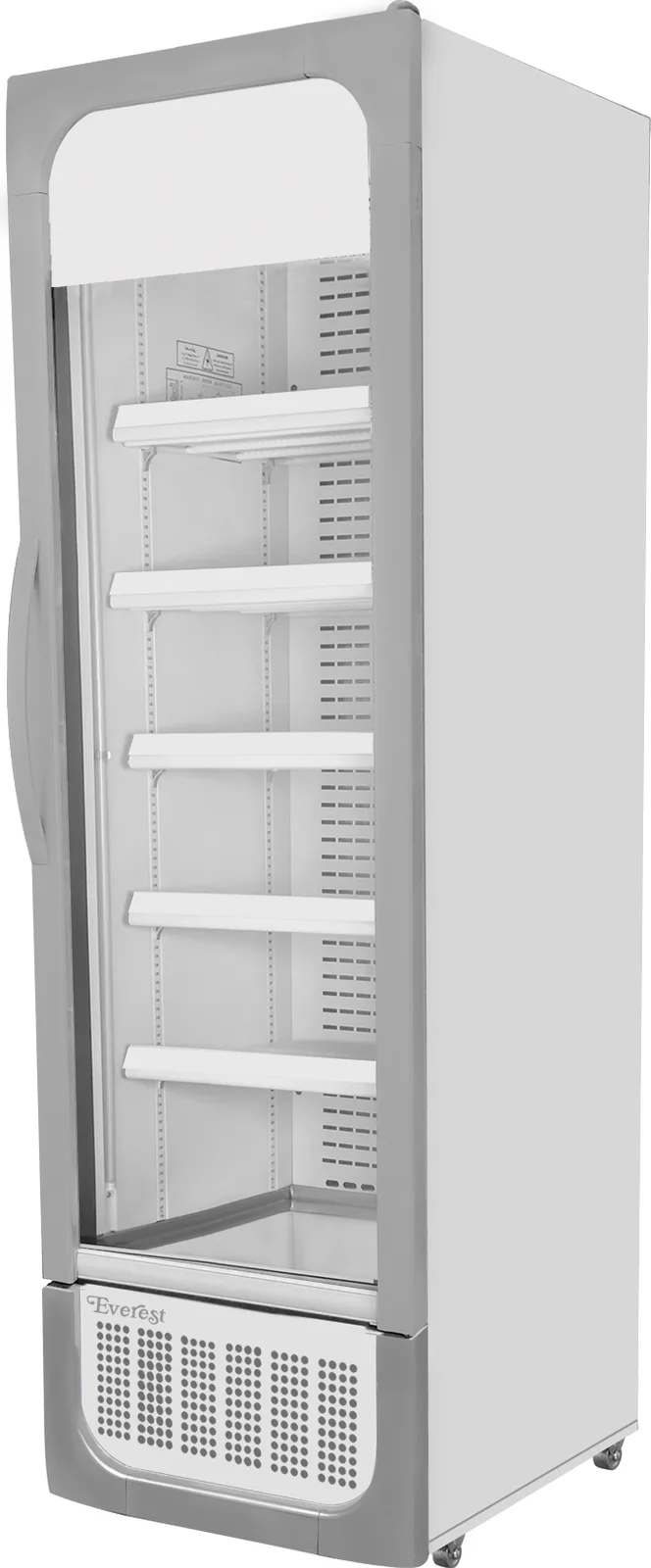

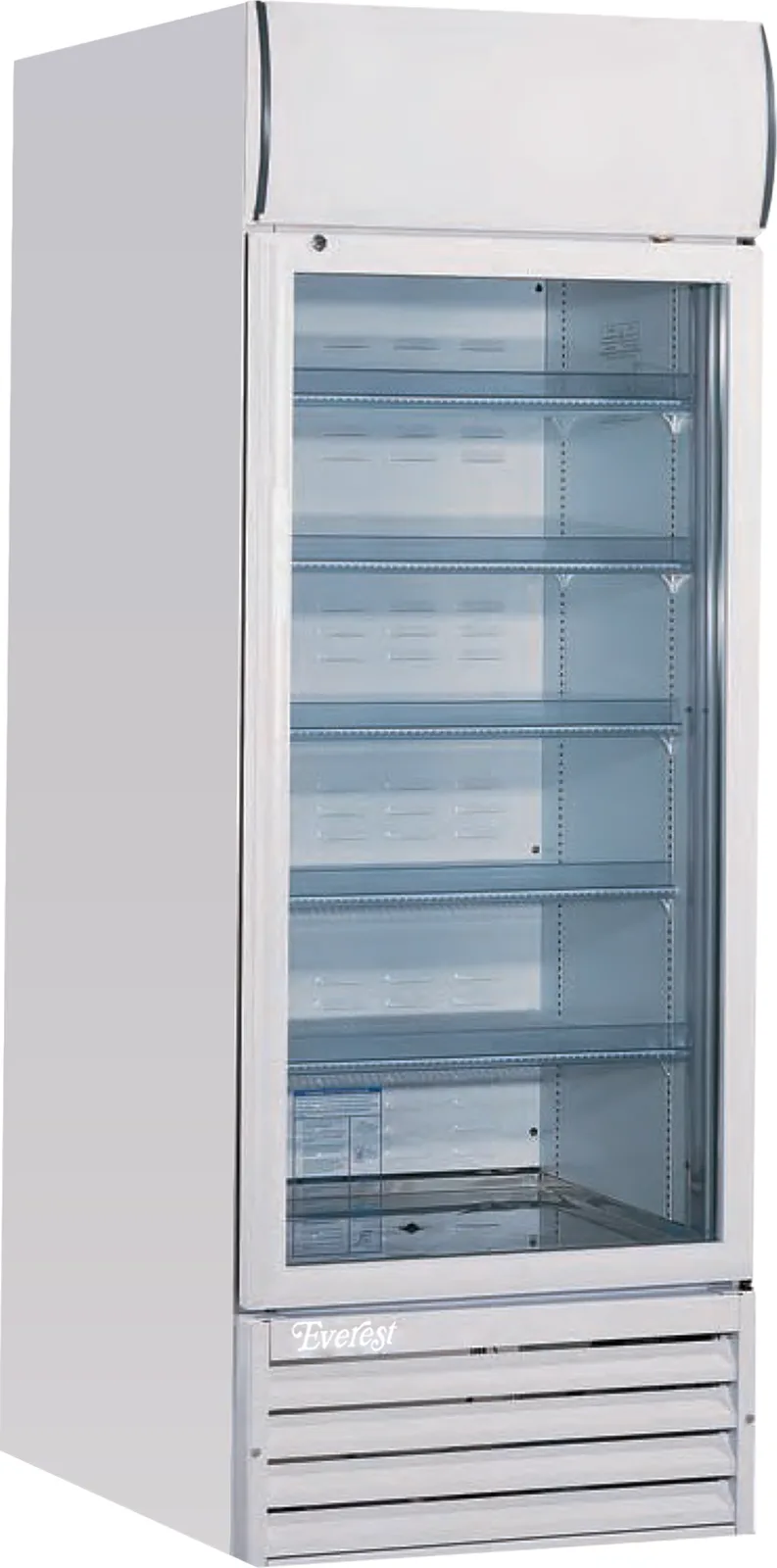

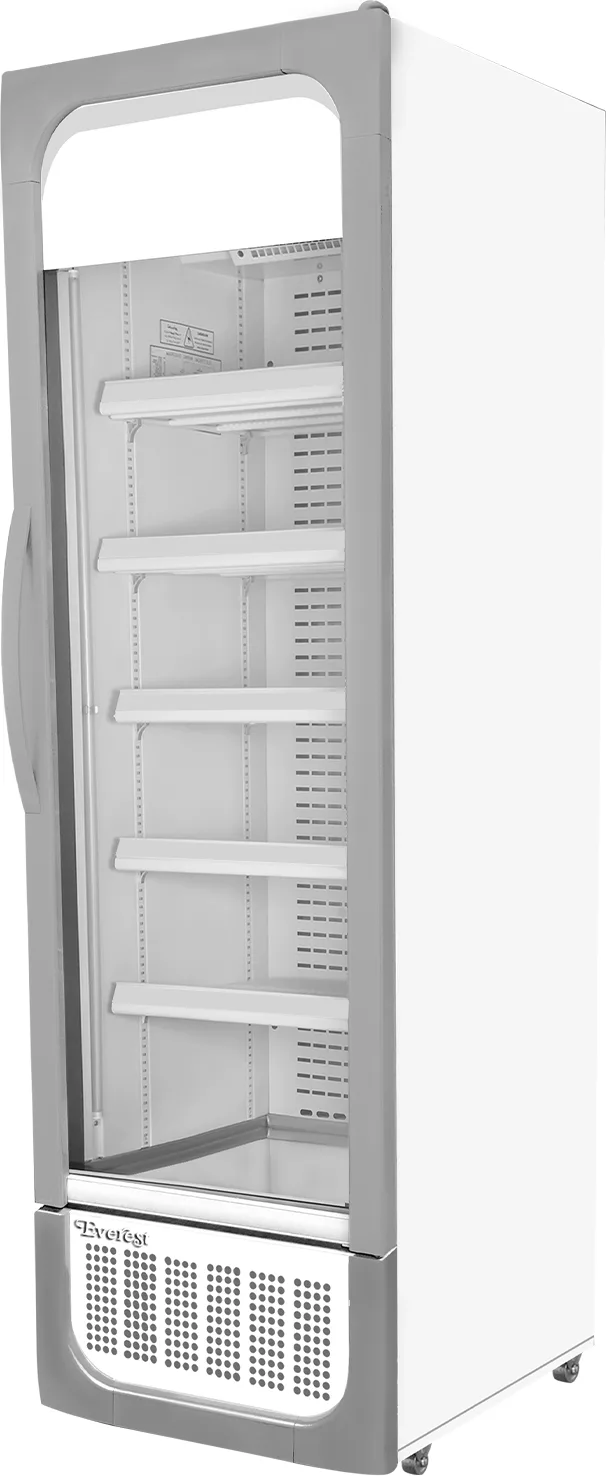

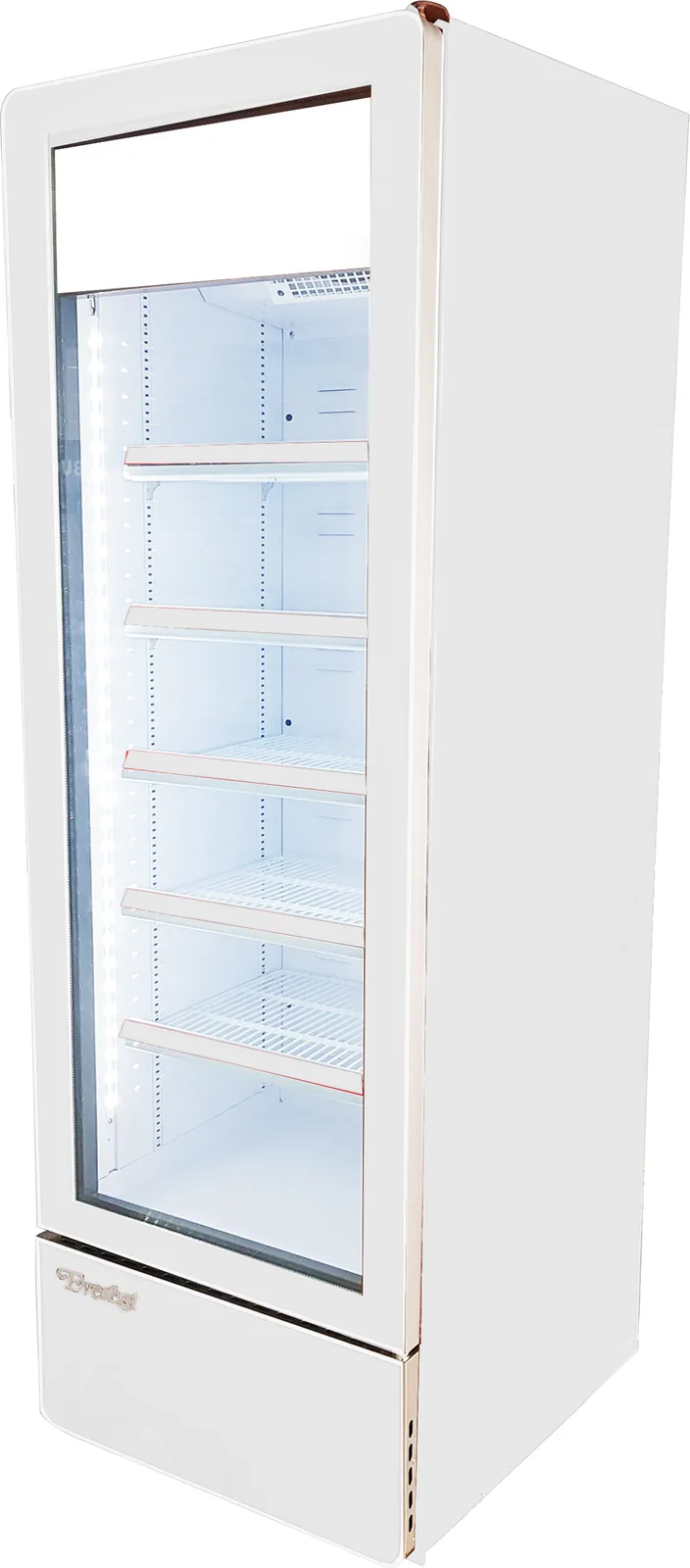

Visi Cooler 650

650 L single door for high-turnover beverage outlets.

Model code: EVC-650Energy class: B

Gross capacity
650L
Temperature range
1…10°C
Annual energy consumption
891kWh/year
Warranty
60mo
Request a Quote

The cabinet

Overview

Built for outlets that restock twice a day. The evaporator is oversized relative to the cabinet so that a full warm restock is pulled into band without the compressor running flat out for hours.

Doors
1
Refrigerant
R290
Dimensions (W × D × H)
750 × 760 × 2050 mm
Net capacity
604 L
Climate class
4 (30 °C / 55% RH) · Gulf option 43 °C / 65% RH
Warranty
12/60 mo

Annual consumption measured over a standard 24-hour duty cycle at 25°C ambient.

Features and benefits

  1. 01Oversized evaporatorSized for restocking load, not for a static cabinet, so pull-down after a delivery is measured in minutes.
  2. 02Heavy-duty hinge setRated to the equivalent of ten years of high-traffic door cycling on our endurance rigs.
  3. 03Branded canopy as standardIlluminated header sized for a full brand lockup, applied on our own line rather than by a third party.

Technology in this model

  • EMMD demand-matched controlCompressor speed tracks real cooling load, returning up to 20% energy savings against a fixed-speed unit.
  • Full-height LED illuminationVertical LED bars lift shelf-level brightness while drawing a fraction of a fluorescent load.
  • R290 hydrocarbon refrigerantLow-GWP charge in series production, more than 99% below an equivalent R404A circuit.
  • Low-E double glazingHeated perimeter glazing keeps the door clear at 65% relative humidity, so product stays visible.
  • Keyed door lockFitted as standard for unattended, staff-area and overnight placement.

Full specification

Specifications are nominal and measured at 25°C ambient. Tolerances and market-specific variants are confirmed on quotation.

Request a QuoteDownload ManualDownload Brochure

Capacity & dimensions

Visi Cooler 650 EVC-650 — Full specification — Capacity & dimensions
Gross capacity650 L
Net capacity604 L
Dimensions (W × D × H)750 × 760 × 2050 mm
Net weight118 kg
Doors1 door
Shelves6 adjustable wire shelves

Energy & lighting

Visi Cooler 650 EVC-650 — Full specification — Energy & lighting
Energy classEnergy class: B
Annual energy consumption891 kWh/year
LightingLED canopy and full-height side LED

Cooling system

Visi Cooler 650 EVC-650 — Full specification — Cooling system
RefrigerantR290
Temperature range1 … 10 °C
Climate class4 (30 °C / 55% RH) · Gulf option 43 °C / 65% RH
DefrostAdaptive, demand-triggered
ControllerEMMD demand-matched digital controller

Power & support

Visi Cooler 650 EVC-650 — Full specification — Power & support
Power supply220–240 V / 50 Hz
Noise level45 dB(A)
Warranty12 / 60 months

Request a quote for this model

Your inquiry arrives pre-filled with this model name and code, so nothing is lost in translation.

Visi Cooler 650 · EVC-650
