Chillers · Double Door

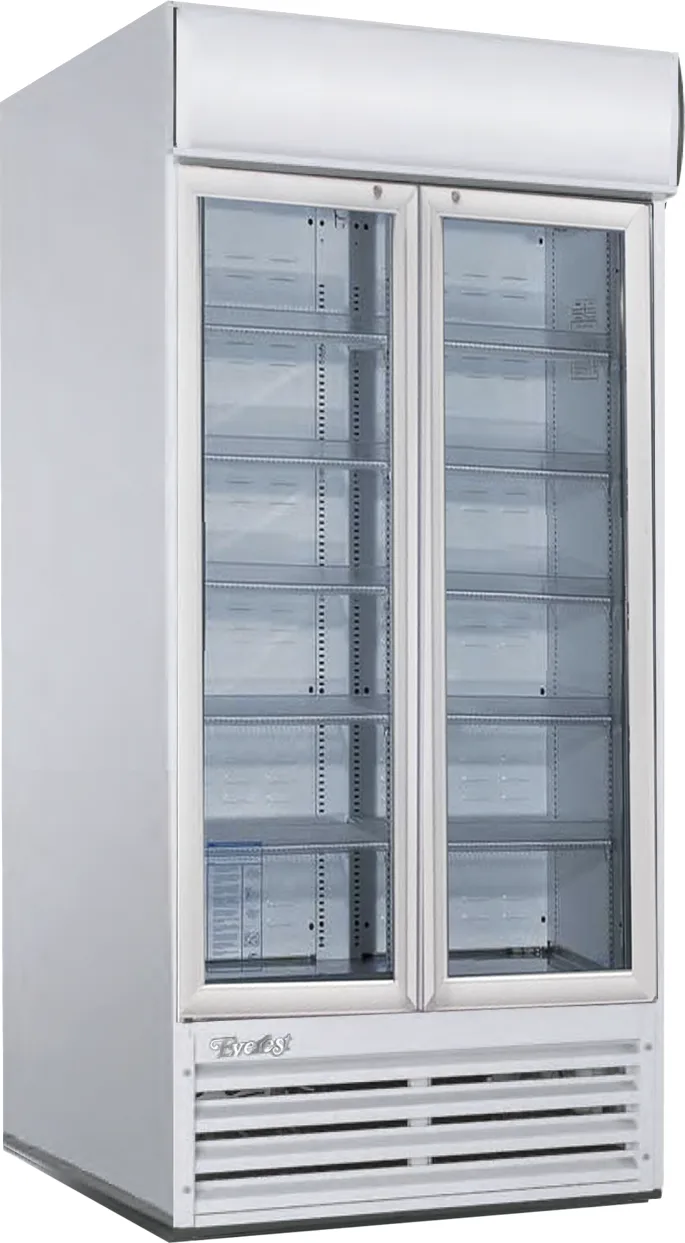

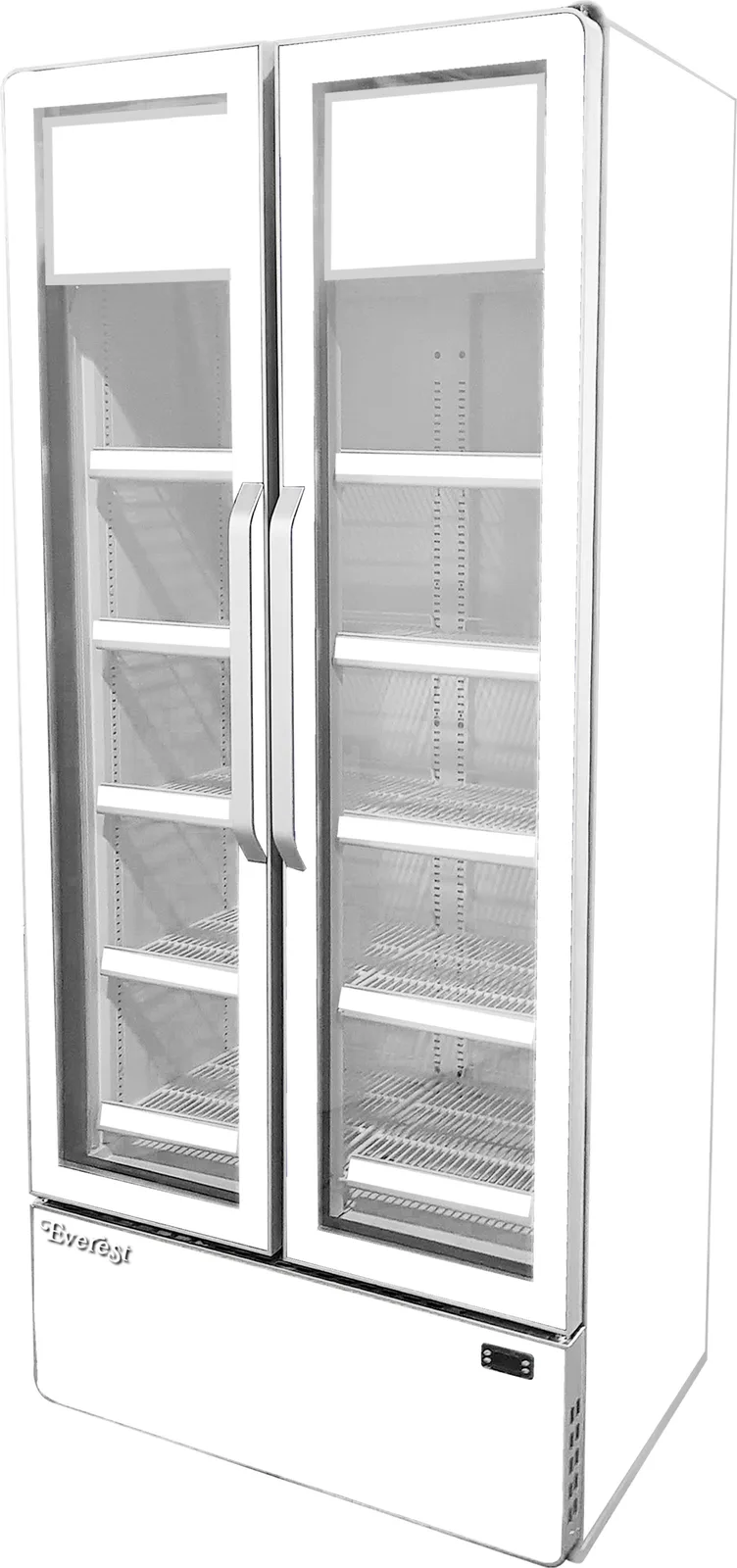

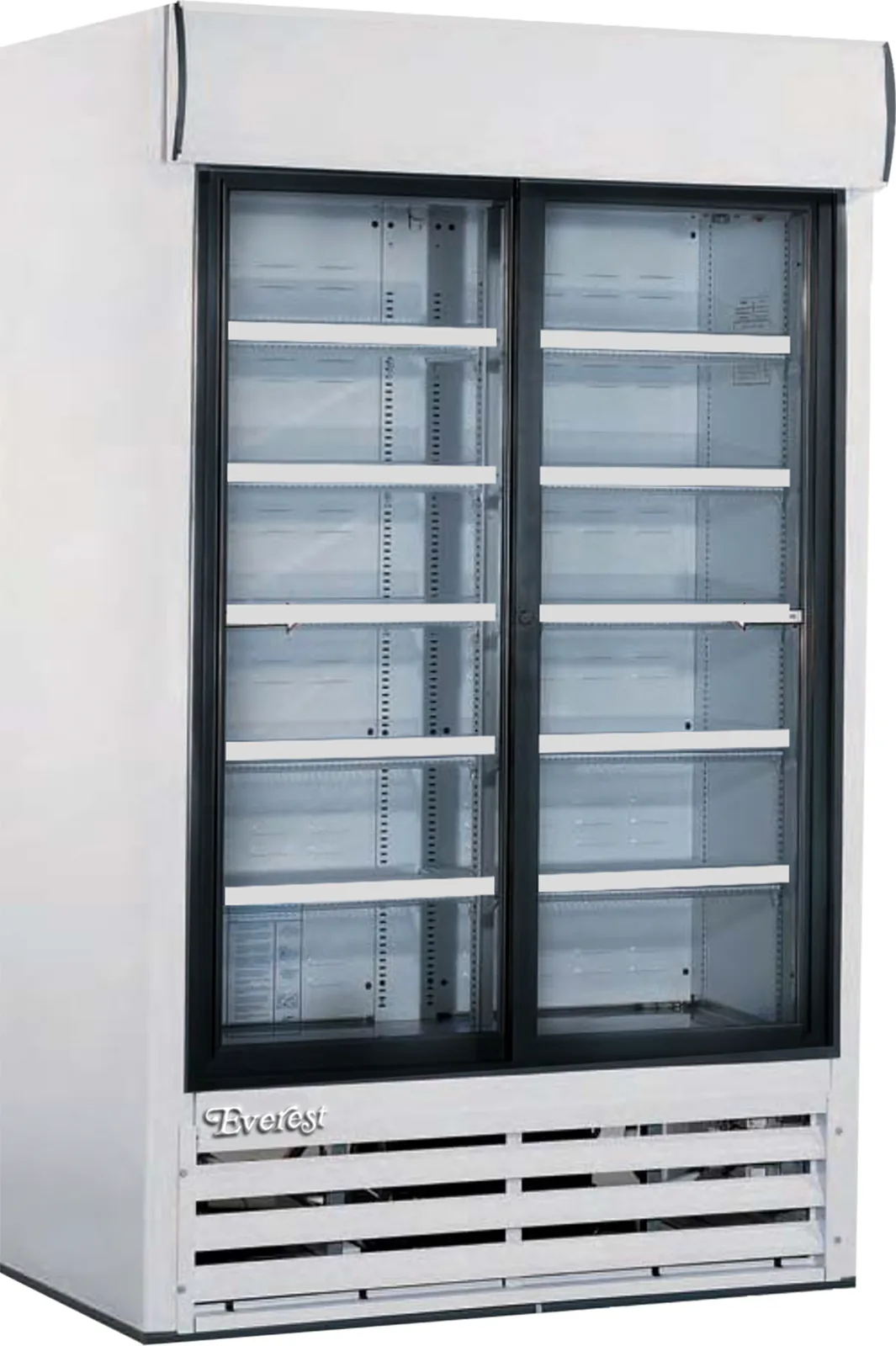

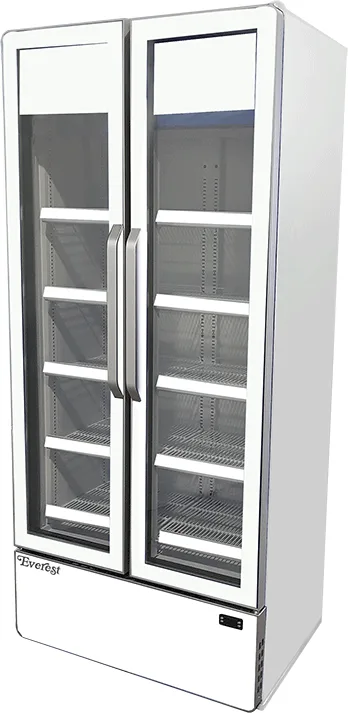

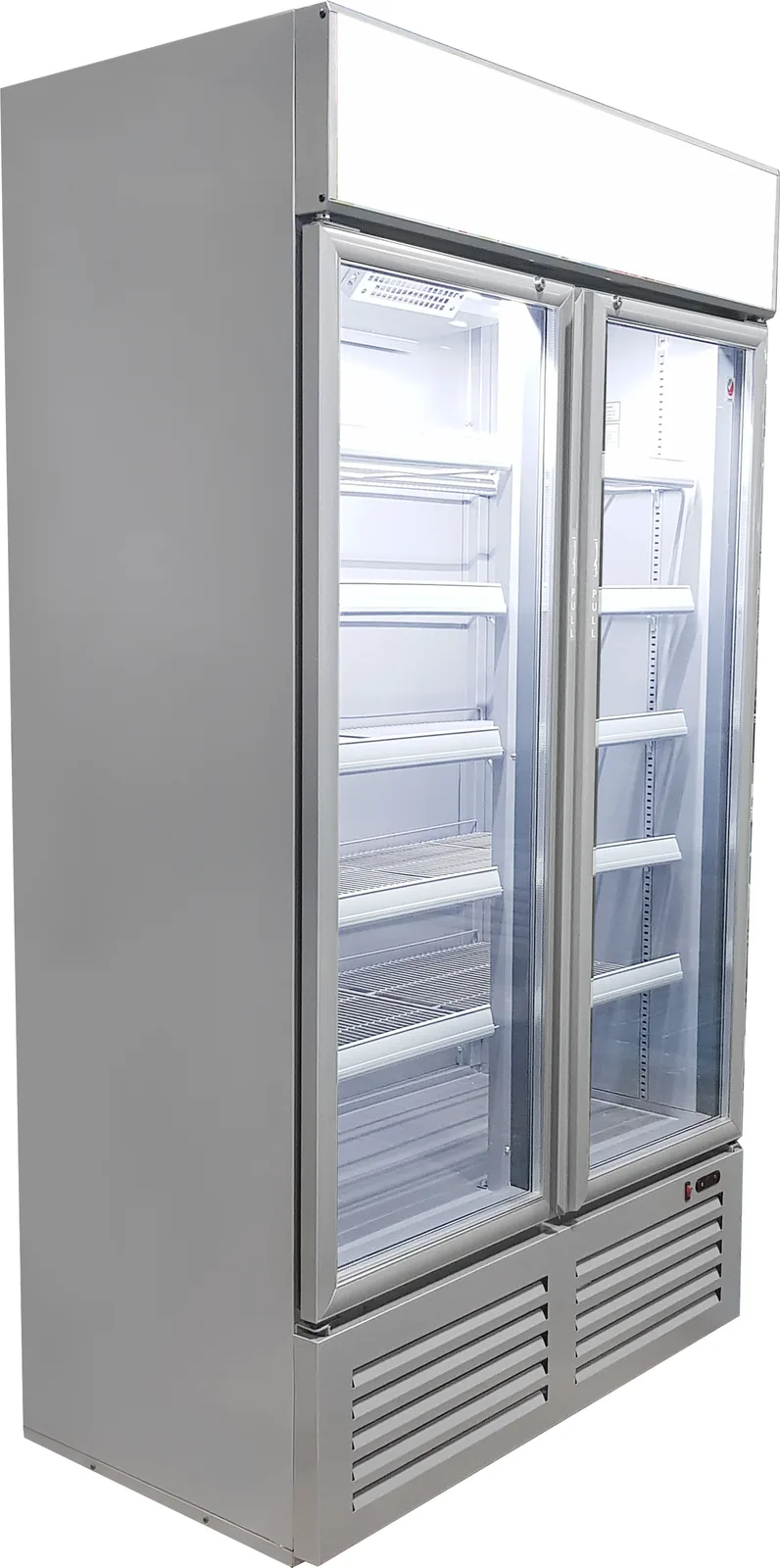

Visi Cooler 800

Double-door 800 L cooler for supermarket chilled aisles.

Model code: EVC-800Best sellerEnergy class: A

Gross capacity
800L
Temperature range
0…8°C
Annual energy consumption
1,024kWh/year
Warranty
60mo
Request a Quote

The cabinet

Overview

The first double-door model in the range. Two independently hung doors mean half the cabinet stays closed during service, which is where most of the energy advantage over a single wide door comes from.

Doors
2
Refrigerant
R290
Dimensions (W × D × H)
1200 × 720 × 2010 mm
Net capacity
742 L
Climate class
4 (30 °C / 55% RH) · Gulf option 43 °C / 65% RH
Warranty
12/60 mo

Annual consumption measured over a standard 24-hour duty cycle at 25°C ambient.

Features and benefits

  1. 01Two doors, half the lossIndependent doors keep the unopened half sealed, cutting cold-air spill during restocking and browsing.
  2. 02Two-column shelvingEight shelves across two columns, each adjustable independently for mixed pack formats.
  3. 03Single compressor circuitOne circuit serving both columns, which keeps the service parts list identical to the single-door models.

Technology in this model

  • EMMD demand-matched controlCompressor speed tracks real cooling load, returning up to 20% energy savings against a fixed-speed unit.
  • Full-height LED illuminationVertical LED bars lift shelf-level brightness while drawing a fraction of a fluorescent load.
  • R290 hydrocarbon refrigerantLow-GWP charge in series production, more than 99% below an equivalent R404A circuit.
  • Low-E double glazingHeated perimeter glazing keeps the door clear at 65% relative humidity, so product stays visible.
  • Keyed door lockFitted as standard for unattended, staff-area and overnight placement.
  • Digital controllerLockable set point with fault-code readout for first-line diagnosis before a visit is booked.

Full specification

Specifications are nominal and measured at 25°C ambient. Tolerances and market-specific variants are confirmed on quotation.

Request a QuoteDownload ManualDownload Brochure

Capacity & dimensions

Visi Cooler 800 EVC-800 — Full specification — Capacity & dimensions
Gross capacity800 L
Net capacity742 L
Dimensions (W × D × H)1200 × 720 × 2010 mm
Net weight156 kg
Doors2 doors
Shelves8 adjustable wire shelves, 2 columns

Energy & lighting

Visi Cooler 800 EVC-800 — Full specification — Energy & lighting
Energy classEnergy class: A
Annual energy consumption1024 kWh/year
LightingLED canopy and full-height side LED

Cooling system

Visi Cooler 800 EVC-800 — Full specification — Cooling system
RefrigerantR290
Temperature range0 … 8 °C
Climate class4 (30 °C / 55% RH) · Gulf option 43 °C / 65% RH
DefrostAdaptive, demand-triggered
ControllerEMMD demand-matched digital controller

Power & support

Visi Cooler 800 EVC-800 — Full specification — Power & support
Power supply220–240 V / 50 Hz
Noise level46 dB(A)
Warranty12 / 60 months
