Product gallery

Chillers · Single Door

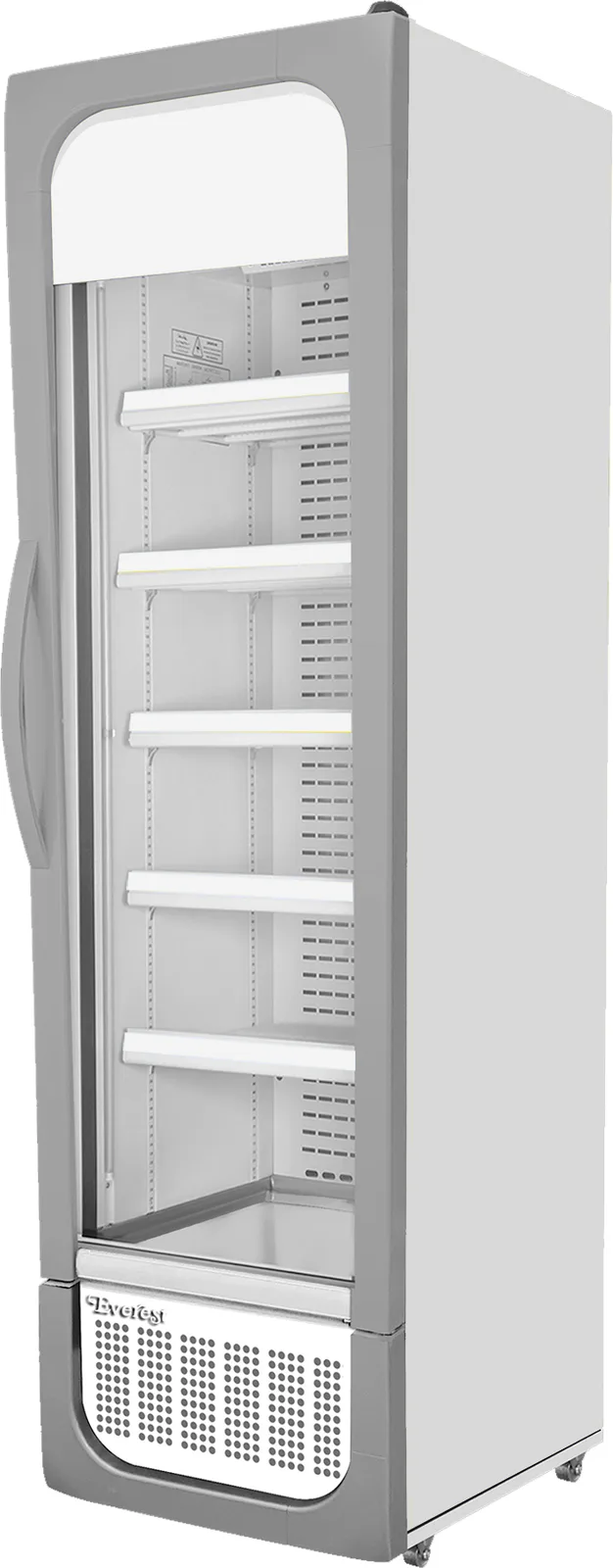

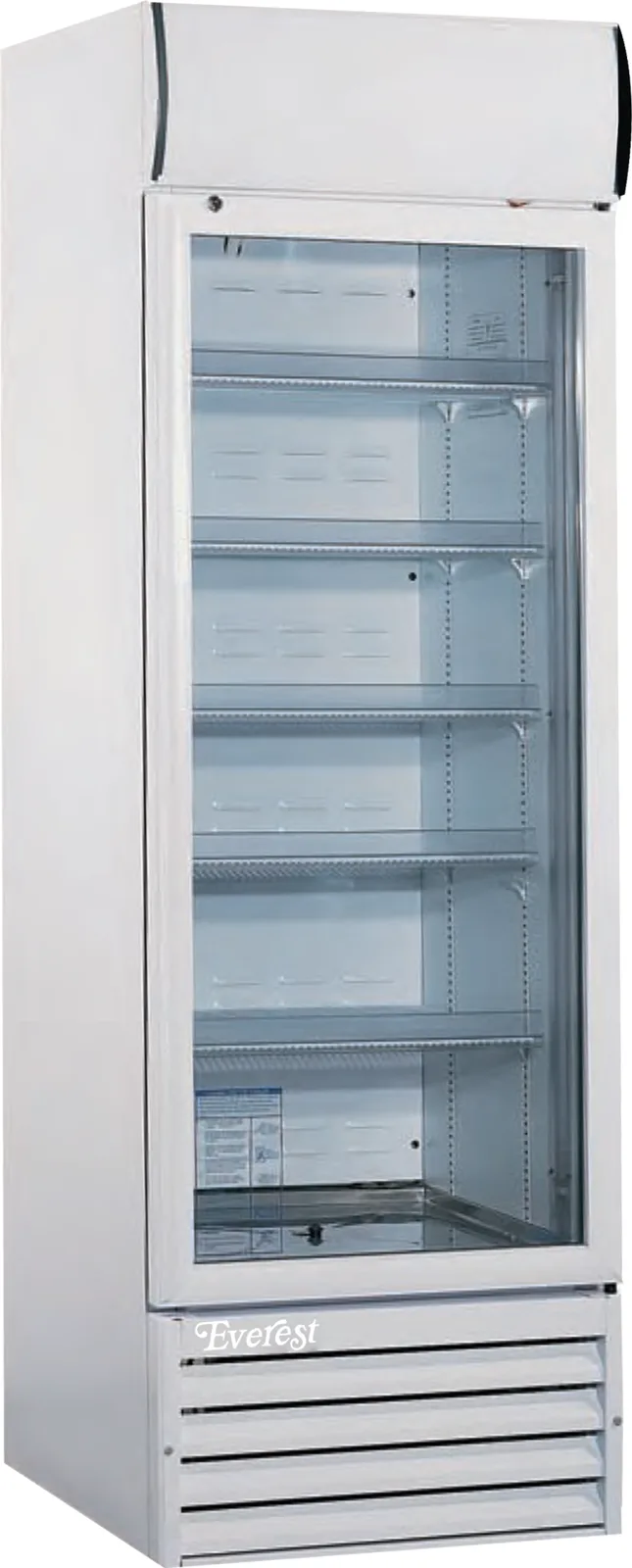

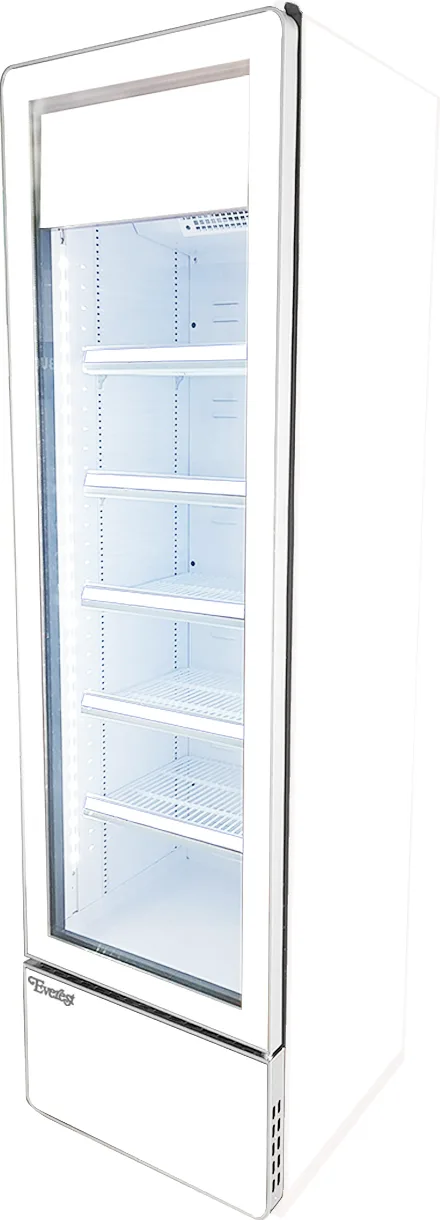

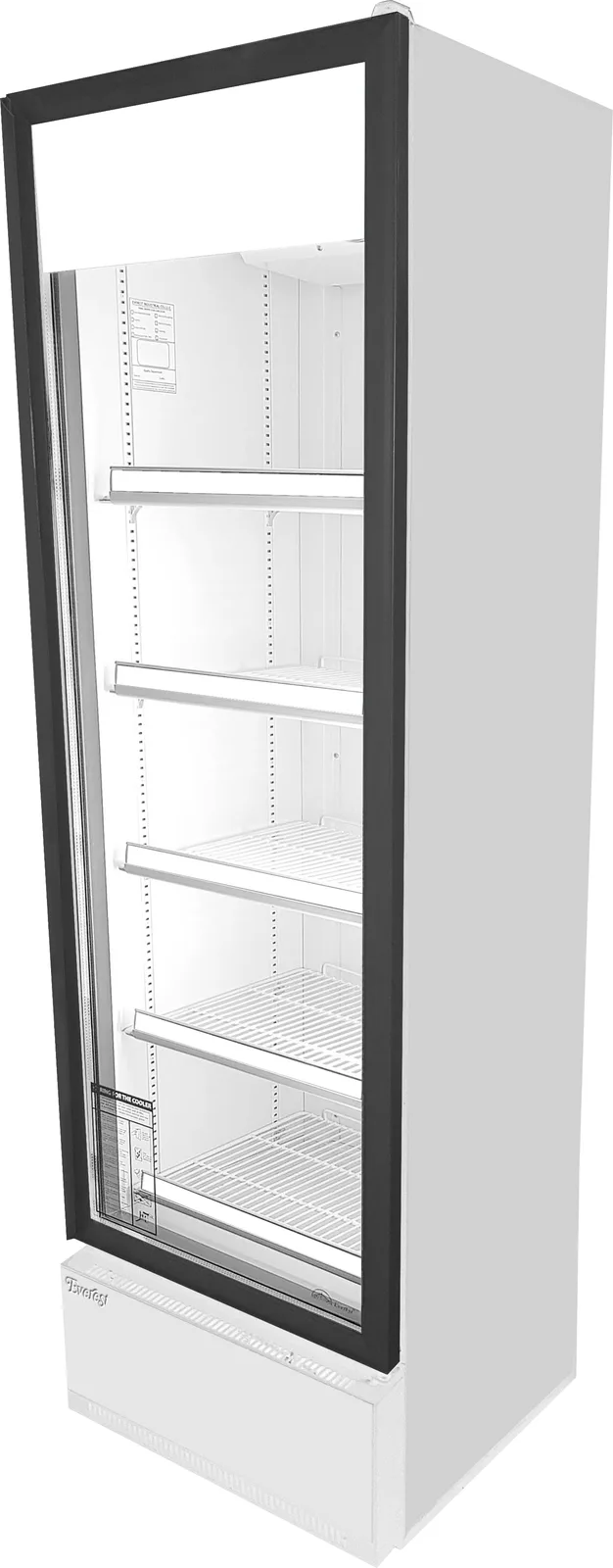

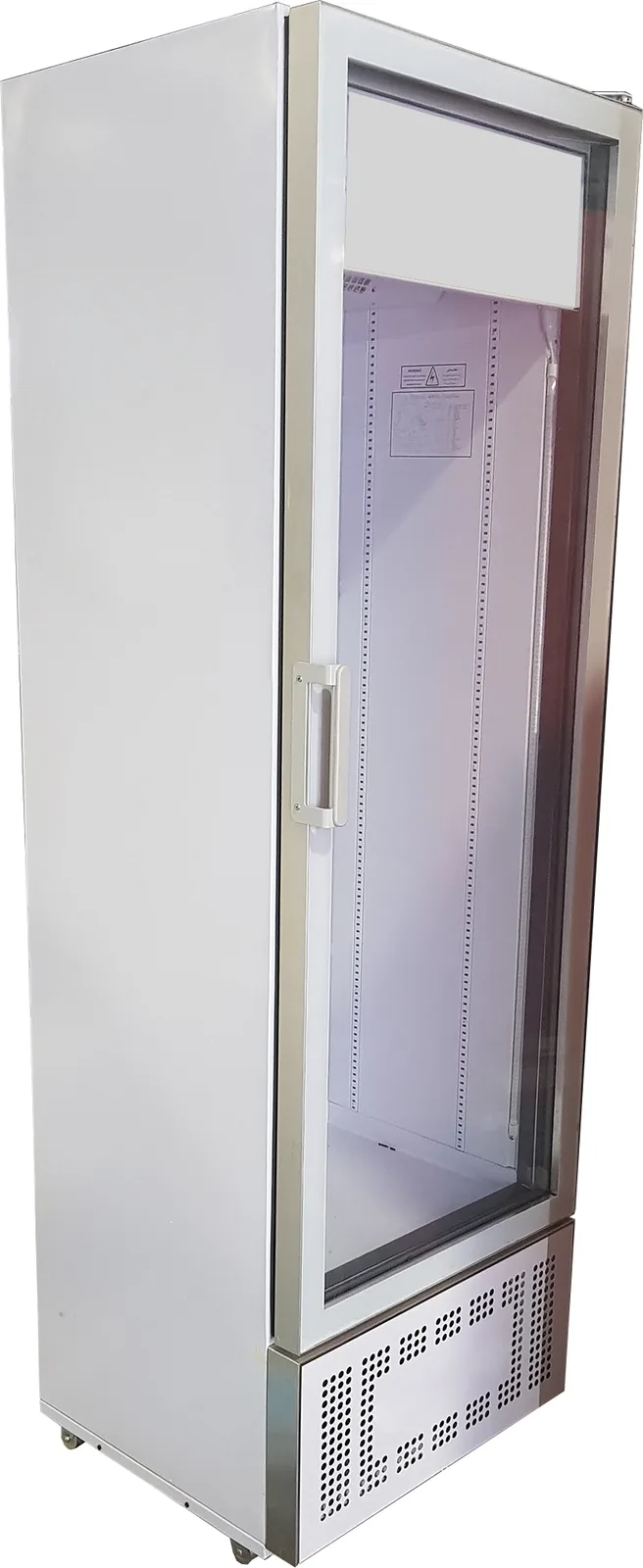

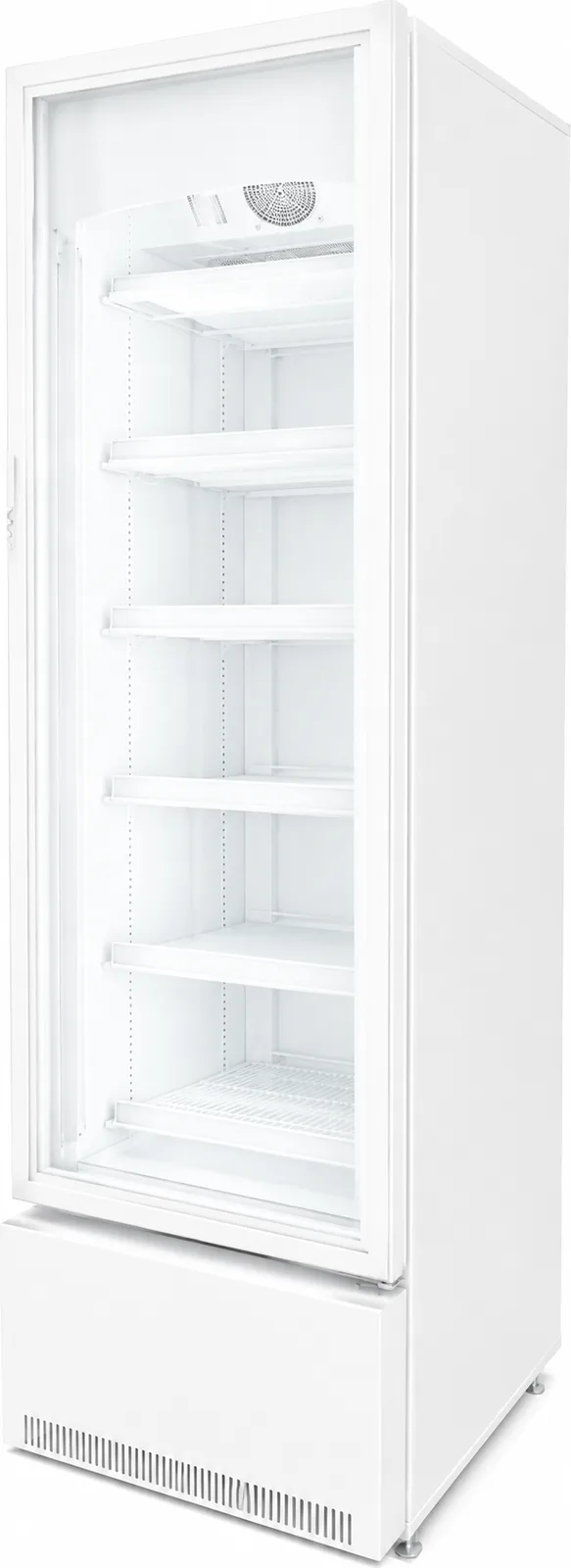

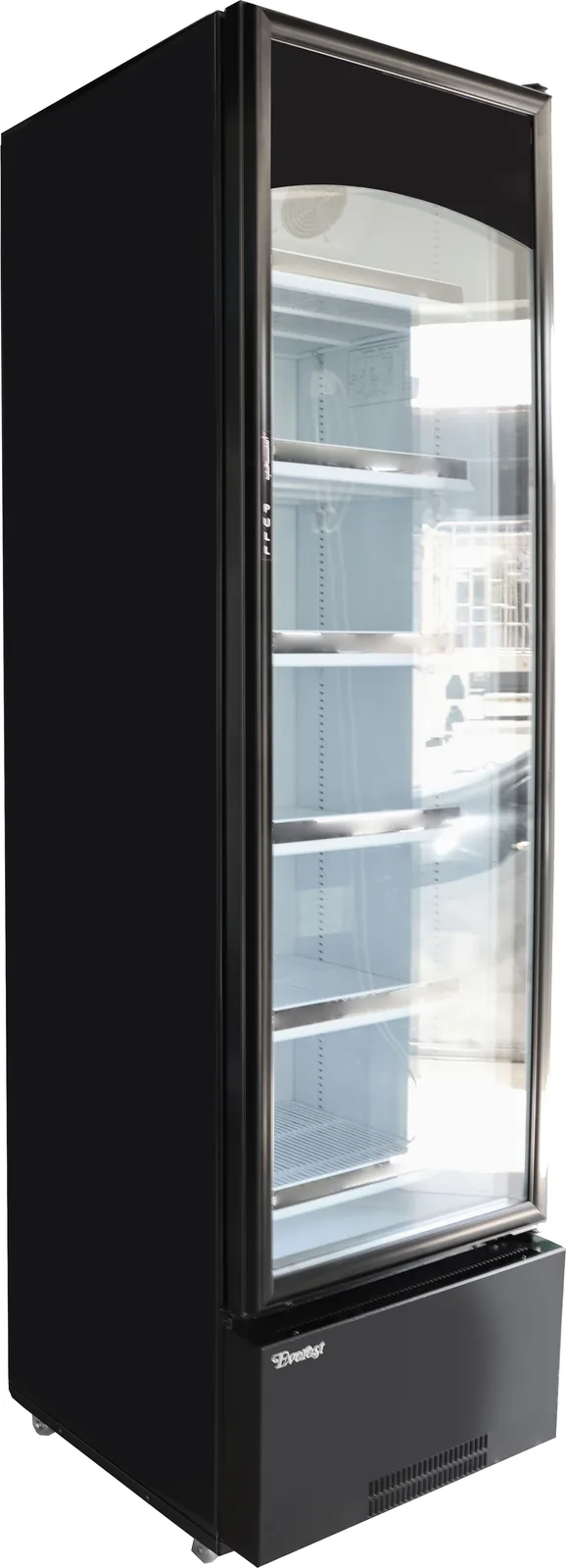

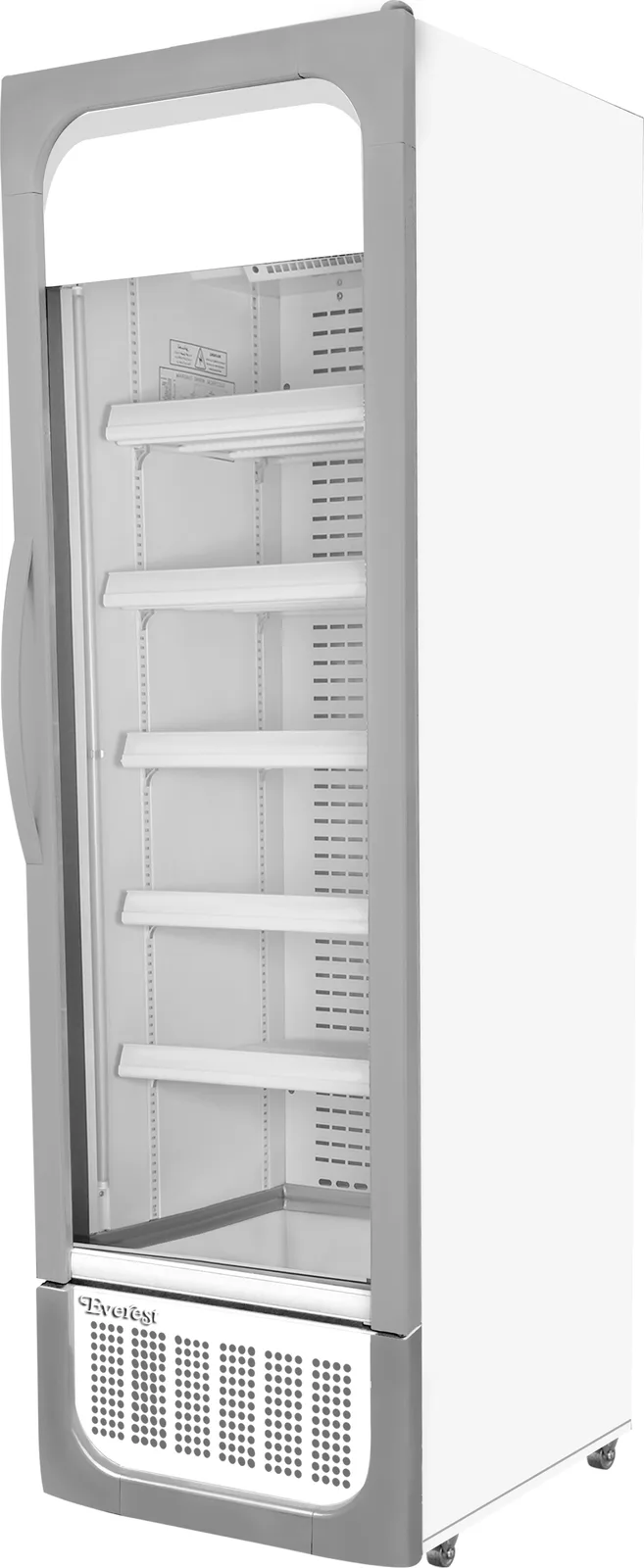

Visi Cooler 500

500 L single door with six shelves — the widest facing count in its footprint.

Model code: EVC-500Best sellerEnergy class: A

Gross capacity
500L
Temperature range
0…8°C
Annual energy consumption
742kWh/year
Warranty
60mo
Request a Quote

The cabinet

Overview

A deeper cabinet that adds a sixth shelf and roughly 20% more facings than the 400, without widening the aperture in the aisle. Specified most often by dairy and chilled-food customers who need shelf count rather than single-item volume.

Doors
1
Refrigerant
R290
Dimensions (W × D × H)
680 × 720 × 2010 mm
Net capacity
464 L
Climate class
4 (30 °C / 55% RH) · Gulf option 43 °C / 65% RH
Warranty
12/60 mo

Annual consumption measured over a standard 24-hour duty cycle at 25°C ambient.

Features and benefits

  1. 01Six shelves in a single apertureMore facings per metre of aisle, which is the metric category managers are actually measured on.
  2. 02Narrow temperature bandHolds ±0.5 °C at the bottom shelf through door cycling, which is what dairy specifications require.
  3. 03Reinforced shelf loadingEach shelf carries 45 kg, enough for glass bottles and multipacks without deflection.

Technology in this model

  • EMMD demand-matched controlCompressor speed tracks real cooling load, returning up to 20% energy savings against a fixed-speed unit.
  • Full-height LED illuminationVertical LED bars lift shelf-level brightness while drawing a fraction of a fluorescent load.
  • R290 hydrocarbon refrigerantLow-GWP charge in series production, more than 99% below an equivalent R404A circuit.
  • Low-E double glazingHeated perimeter glazing keeps the door clear at 65% relative humidity, so product stays visible.
  • Keyed door lockFitted as standard for unattended, staff-area and overnight placement.
  • Digital controllerLockable set point with fault-code readout for first-line diagnosis before a visit is booked.

Full specification

Specifications are nominal and measured at 25°C ambient. Tolerances and market-specific variants are confirmed on quotation.

Request a QuoteDownload ManualDownload Brochure

Capacity & dimensions

Visi Cooler 500 EVC-500 — Full specification — Capacity & dimensions
Gross capacity500 L
Net capacity464 L
Dimensions (W × D × H)680 × 720 × 2010 mm
Net weight104 kg
Doors1 door
Shelves6 adjustable wire shelves

Energy & lighting

Visi Cooler 500 EVC-500 — Full specification — Energy & lighting
Energy classEnergy class: A
Annual energy consumption742 kWh/year
LightingLED canopy and full-height side LED

Cooling system

Visi Cooler 500 EVC-500 — Full specification — Cooling system
RefrigerantR290
Temperature range0 … 8 °C
Climate class4 (30 °C / 55% RH) · Gulf option 43 °C / 65% RH
DefrostAdaptive, demand-triggered
ControllerEMMD demand-matched digital controller

Power & support

Visi Cooler 500 EVC-500 — Full specification — Power & support
Power supply220–240 V / 50 Hz
Noise level44 dB(A)
Warranty12 / 60 months

Request a quote for this model

Your inquiry arrives pre-filled with this model name and code, so nothing is lost in translation.

Visi Cooler 500 · EVC-500

Fields marked with an asterisk are required.
