Chillers · Single Door

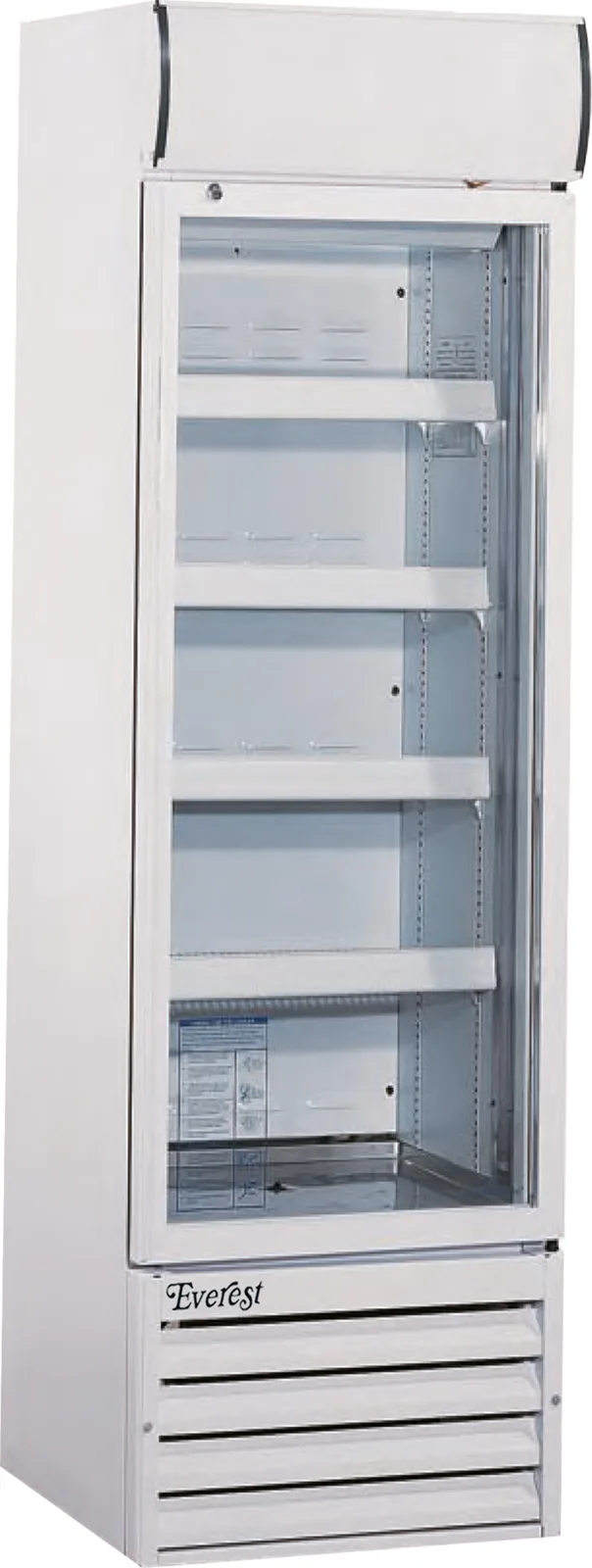

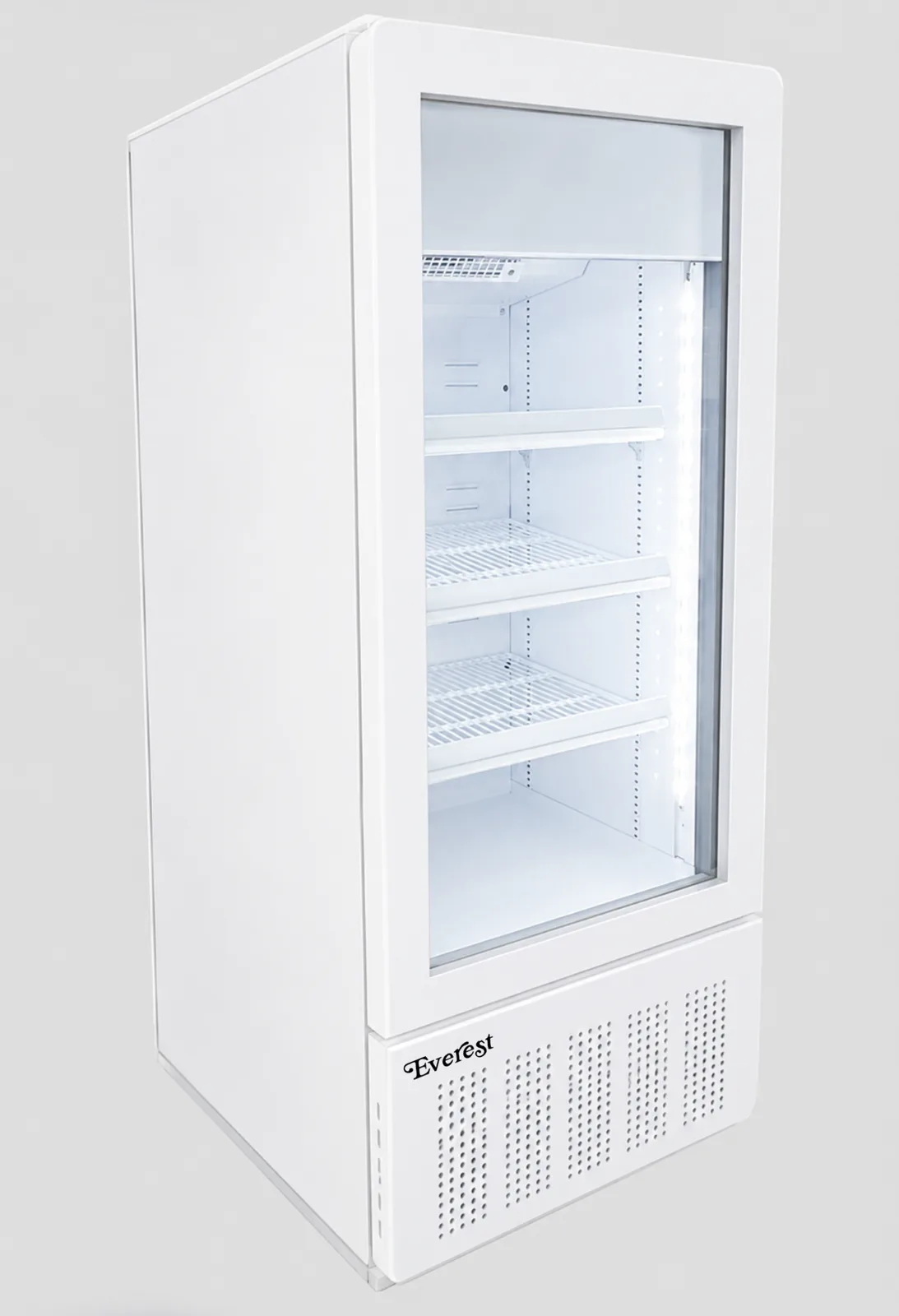

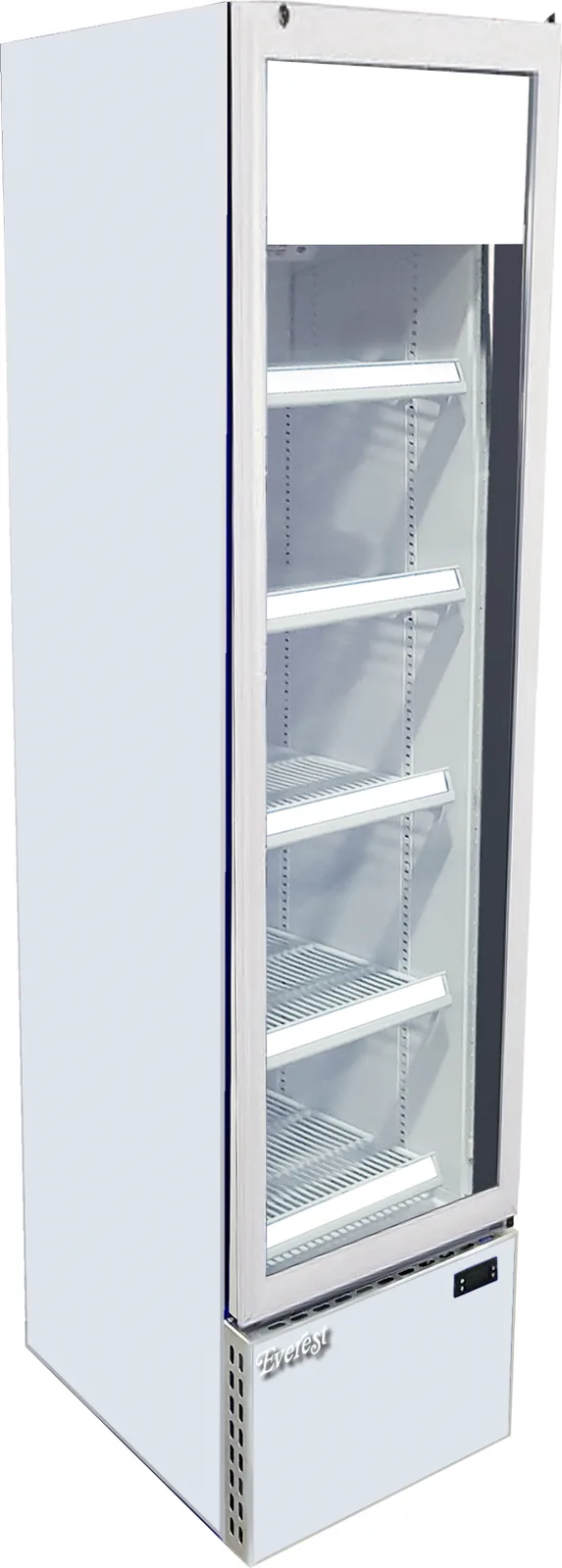

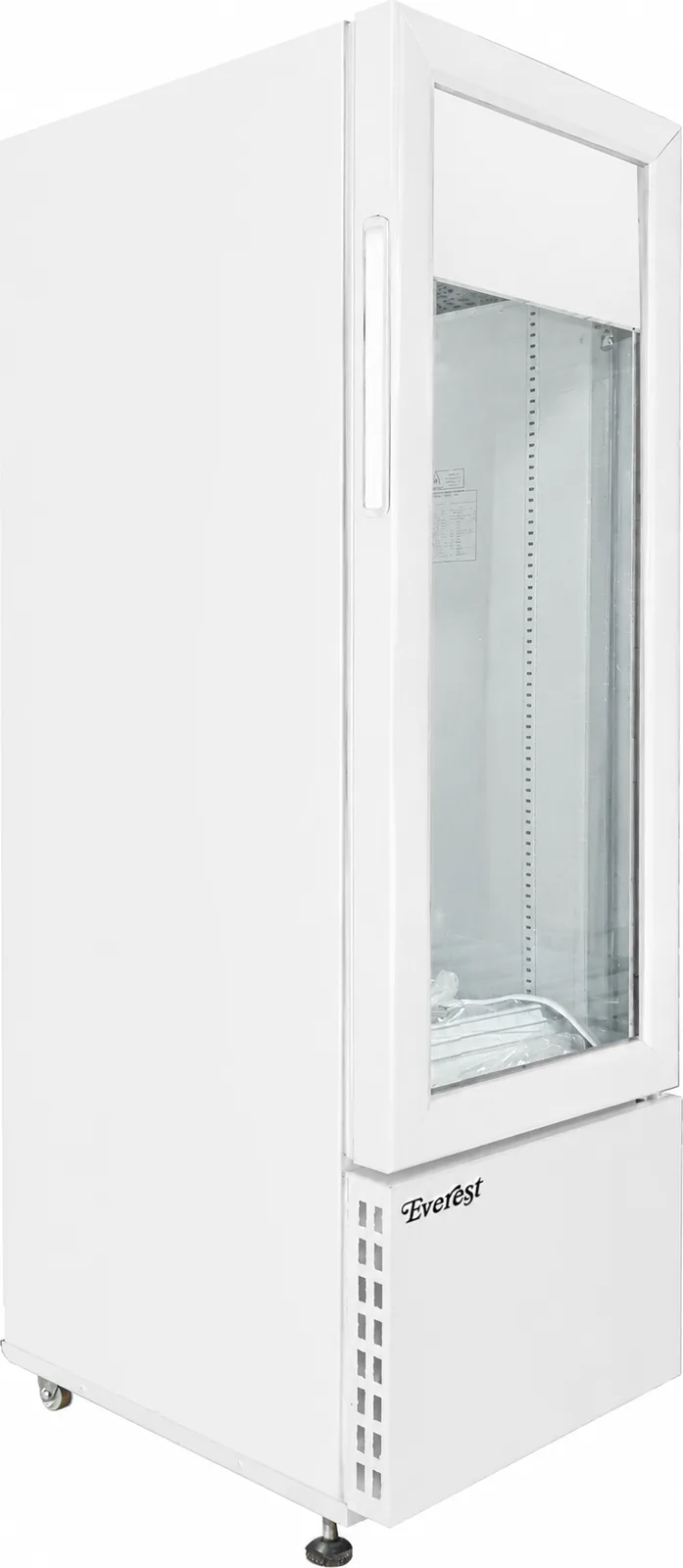

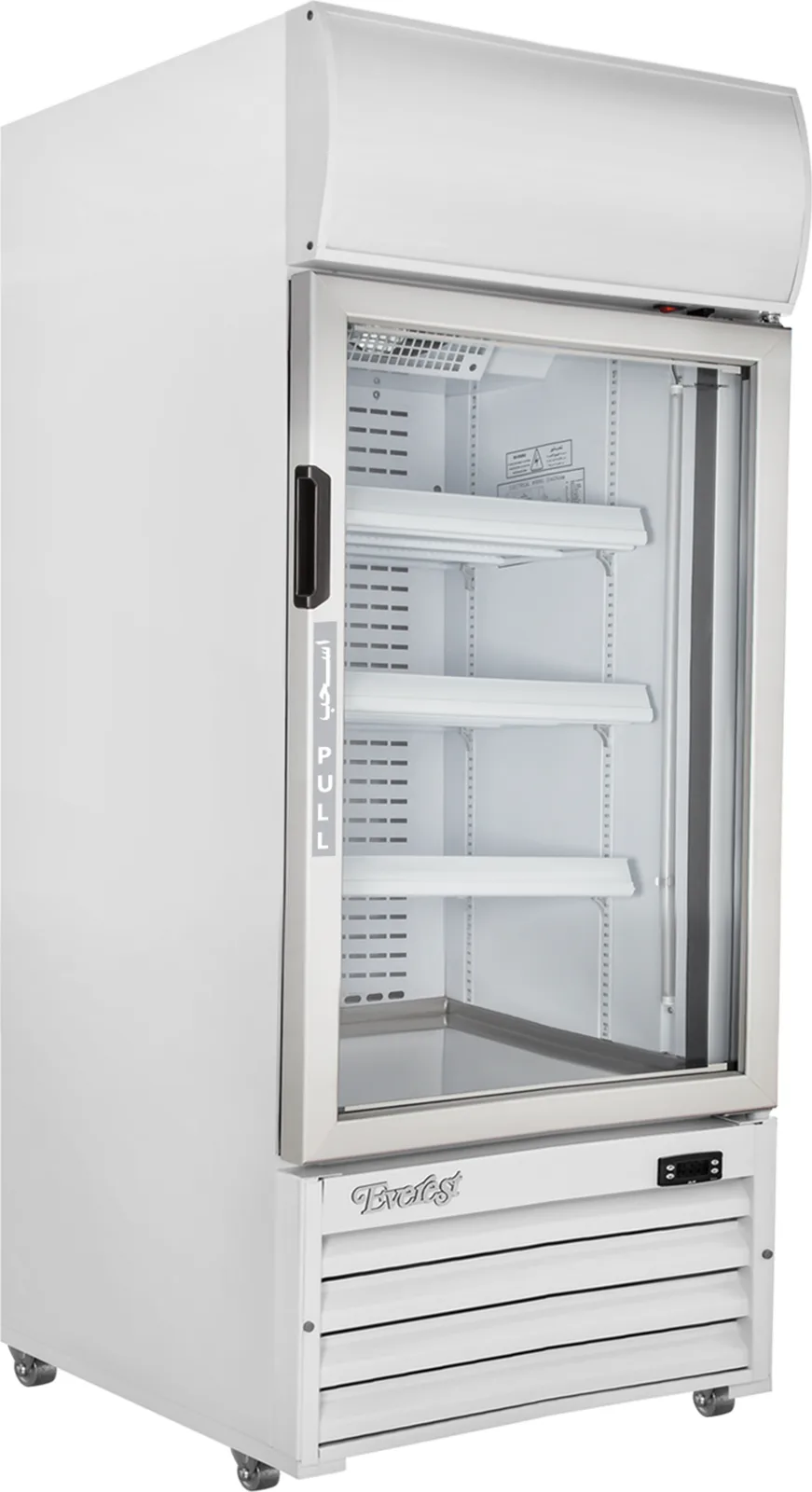

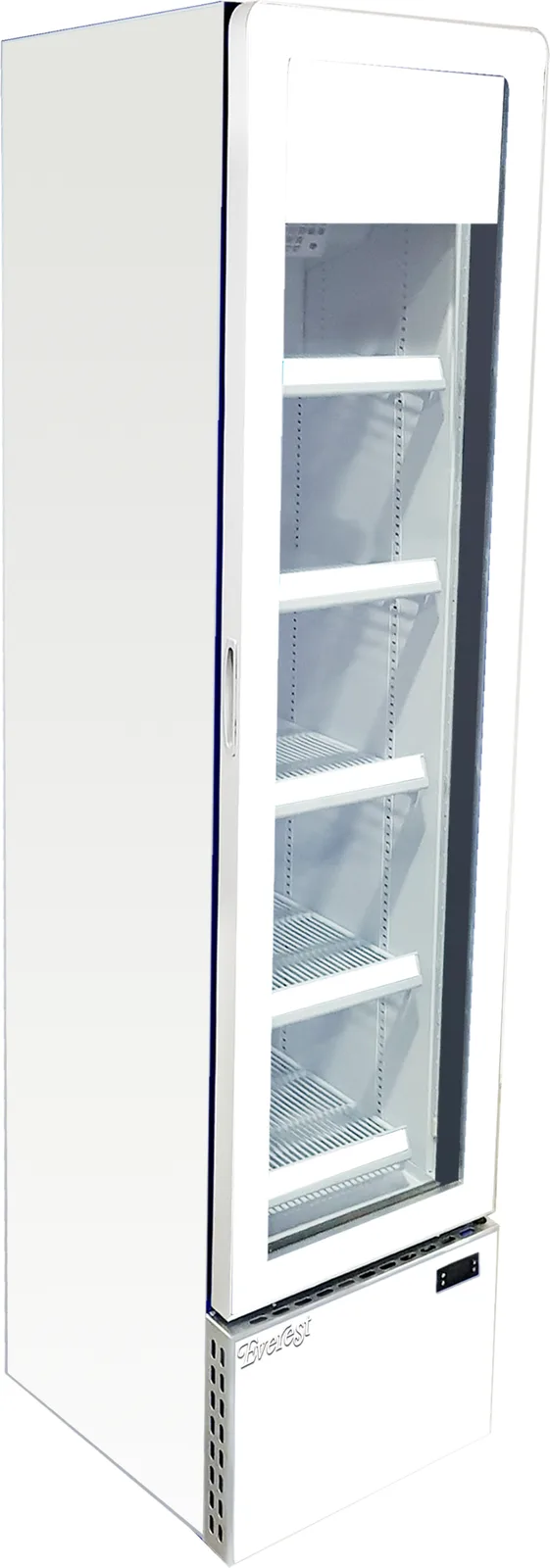

Visi Cooler 300

Single-door 300 L display cooler for tight counters and forecourt outlets.

Model code: EVC-300Energy class: B

Gross capacity
300L
Temperature range
1…10°C
Annual energy consumption
612kWh/year
Warranty
60mo
Request a Quote

The cabinet

Overview

The smallest cabinet in the visi range, sized for outlets where floor space is the binding constraint. Despite the footprint it carries the same EMMD controller and vertical LED system as the 1,500 L unit, so shelf temperature and product visibility do not drop with capacity.

Doors
1
Refrigerant
R290
Dimensions (W × D × H)
600 × 610 × 1840 mm
Net capacity
276 L
Climate class
4 (30 °C / 55% RH)
Warranty
12/60 mo

Annual consumption measured over a standard 24-hour duty cycle at 25°C ambient.

Features and benefits

  1. 01Fits where a full cooler cannotA 600 mm width lets the unit replace a single gondola end without redrawing the aisle.
  2. 02Recovers fast after the rushEMMD modulates against real door traffic, so the bottom shelf is back in band within minutes rather than at the end of the next cycle.
  3. 03Lower running cost than its classClass B at 612 kWh per year, measured on a standard duty cycle rather than an idle cabinet.

Technology in this model

  • EMMD demand-matched controlCompressor speed tracks real cooling load, returning up to 20% energy savings against a fixed-speed unit.
  • Full-height LED illuminationVertical LED bars lift shelf-level brightness while drawing a fraction of a fluorescent load.
  • R290 hydrocarbon refrigerantLow-GWP charge in series production, more than 99% below an equivalent R404A circuit.
  • Keyed door lockFitted as standard for unattended, staff-area and overnight placement.

Full specification

Specifications are nominal and measured at 25°C ambient. Tolerances and market-specific variants are confirmed on quotation.

Request a QuoteDownload ManualDownload Brochure

Capacity & dimensions

Visi Cooler 300 EVC-300 — Full specification — Capacity & dimensions
Gross capacity300 L
Net capacity276 L
Dimensions (W × D × H)600 × 610 × 1840 mm
Net weight78 kg
Doors1 door
Shelves4 adjustable wire shelves

Energy & lighting

Visi Cooler 300 EVC-300 — Full specification — Energy & lighting
Energy classEnergy class: B
Annual energy consumption612 kWh/year
LightingVertical LED bars, both door pillars

Cooling system

Visi Cooler 300 EVC-300 — Full specification — Cooling system
RefrigerantR290
Temperature range1 … 10 °C
Climate class4 (30 °C / 55% RH)
DefrostAutomatic, controller-timed
ControllerEMMD demand-matched digital controller

Power & support

Visi Cooler 300 EVC-300 — Full specification — Power & support
Power supply220–240 V / 50 Hz
Noise level42 dB(A)
Warranty12 / 60 months

Request a quote for this model

Your inquiry arrives pre-filled with this model name and code, so nothing is lost in translation.

Visi Cooler 300 · EVC-300
